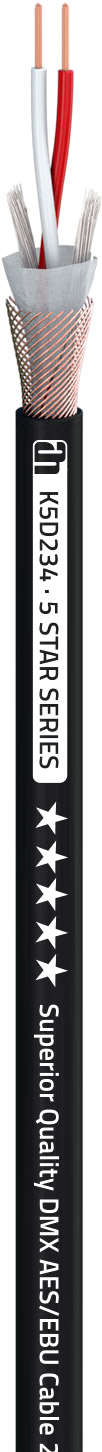

Adam Hall Cables 5 STAR D 234 - DMX, AES/EBU Cable 110 Ohms Digital 2 x 0.34 mm²
€2.24 *
Content:
1 m
Availability:
Near-term available
Delivery time: approx. 1 week
Delivery time: approx. 1 week
Delivery time: approx. 1 week
Item number: 500127420
EAN: 4049521651960
MPN: K5D234
DMX, AES/EBU Cable 110 Ohms Digital 2 x 0.34 mm² 5 Star Series Made in EU Packaging unit:... more
All information about the product:
"Adam Hall Cables 5 STAR D 234 - DMX, AES/EBU Cable 110 Ohms Digital 2 x 0.34 mm²"
DMX, AES/EBU Cable 110 Ohms Digital 2 x 0.34 mm²
- 5 Star Series
- Made in EU
- Packaging unit: 100 m on drum
- Excellent transmission quality
- Extremely robust
The 5 STAR D234 is our classic if you need a DMX, AES/EBU cable with excellent transmission properties and it should also be extremely robust, which is especially helpful with sharp-edged light trusses. It is very well protected against electrical influences thanks to its shielding factor of 100%.
Technical data:| Product type: | Bulk Cable |
| Type: | DMX & AES/EBU Cable |
| Color: | Black |
| Overall diameter: | 6.2 mm |
| AWG: | 22 |
| Center conductor cross section: | 0.34 mm² |
| Center conductor material: | OFC |
| Center conductor construction: | 19 x 0.15 mm |
| Number of internal conductors: | 2 |
| Shield material: | Aluminium fleece |
| Shield: | spiral |
| Shielding factor: | 100 % |
| Line resistance: | 53 Ohm(s) |
| Capacitance: | 63 pF/m |
| Jacket material: | PVC |
| Temperature range: | -25 - 70 °C |
| Weight: | 0,05 kg |
| Additional information: | Bulk Cable |
